Valve 100 Century Plus
Brand

Irritrol USA

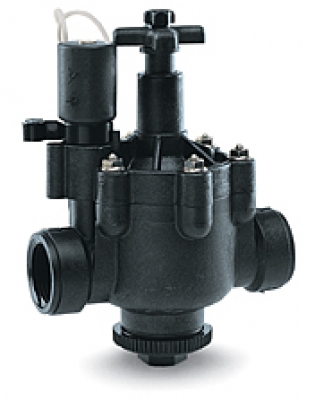

Valve 100 CENTURY PLUS

Valve 100 Century Plus

The valve accepts Controllers with 9V batteries. For that purpose the existing solenoid needs to be repleced with Impulse solenoid 9 - 12 VDC.

Valve 100 Century Plus is manufactured in the USA and is available both with globe and anlge configuration. The valve has working pressure from 0,7 to 13,8 bar and accepts pressure regulator OmniReg.

Characterizations
  • Flow control (F/C)
  • Globe/angle configuration (G/A)
  • Brass flow control stem (2" and 3" mod.)
  • Internal and external manual bleed
  • Body and cap in Nylon reinforced with fiberglass (30%)
  • Molded-in brass studs allow positive bonnet attachment
  • Captive Solenoid (the plunger is retained in the solenoid)
  • Slow, anti water hammer closing
  • Rugged, nylon-reinforced Buna-N double-beaded diaphragm
  • O-ring gasket on unused inlet cap guarantees hermetic seal and does not require Teflon
  • Self-cleaning control orifices
Technical information
The valve has a Female thread BSP 1" - 1 1/2" - 2" - 3" (NPT available request)
Working pressure: 0,7 - 13,8 bar
Solenoid 24VAC 50Hz (24Vac 60 Hz on request)
  • Inrush current, 0,34 Amp.
  • Holdng current, 0,20 Amp.

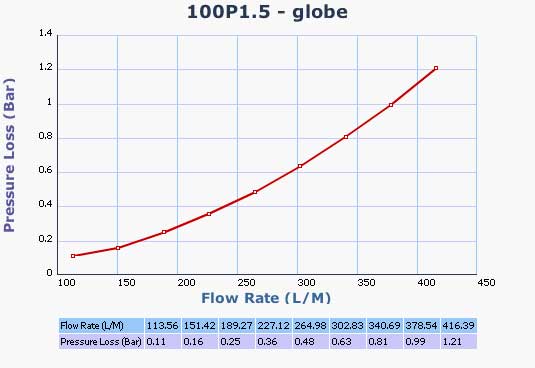

H - Q characteristic of Valve 100 Century Plus 1 1/2" F/C
Globe configuration

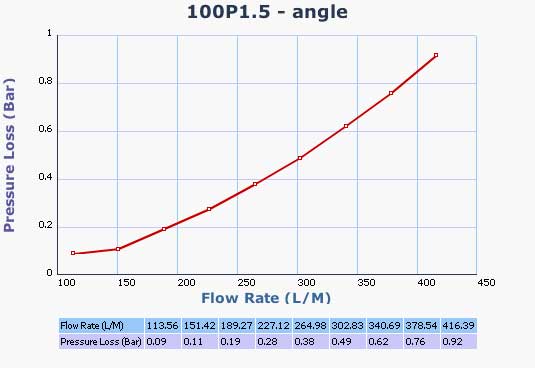

H - Q characteristic of Valve 100 Century Plus 1 1/2" F/C
Angle configuration

Products

    Valve 100 Plus, 1" FBSP FC

    Article № 100P1-BSP

    Price: 110,40 lv.


    Minimum quantity for order 1
    *model_availability_in_stock

    Valve 100 Plus, mod. 1 1/2” FBSP FC

    Article № 100P1.5-BSP

    Price: 168,00 lv.


    Minimum quantity for order 1
    *model_availability_in_stock

    Valve 100 Plus, mod. 2” FBSP FC

    Article № 100P2-BSP

    Price: 278,40 lv.


    Minimum quantity for order 1
    *model_availability_in_stock

    Valve 100 Plus, mod. 3” FBSP FC

    Article № 100P3-BSP

    Price: 528,00 lv.


    Minimum quantity for order 1
    *model_availability_till_3_days

    Valve 100 Plus, mod. 1” FBSP FC

    Article № 100P1-LS-BSP

    Price: 93,60 lv.


    Minimum quantity for order 1
    *model_availability_till_3_days

    Valve 100 Plus, mod. 1 1/2” FBSP FC

    Article № 100P1.5-LS-BSP

    Price: 150,00 lv.


    Minimum quantity for order 1
    *model_availability_at_request

    Valve 100 Plus, mod. 2” FBSP FC

    Article № 100P2-LS-BSP

    Price: 254,40 lv.


    Minimum quantity for order 1
    *model_availability_at_request

    Valve 100 Plus, mod. 3” FBSP FC

    Article № 100P3-LS-BSP

    Price: 494,40 lv.


    Minimum quantity for order 1
    *model_availability_at_request
