Rotor Platinum Sport 1"
Brand

Irritrol USA

Rotor Platinum Sport 1" for sport terrains

Rotor Platinum Sport 1"

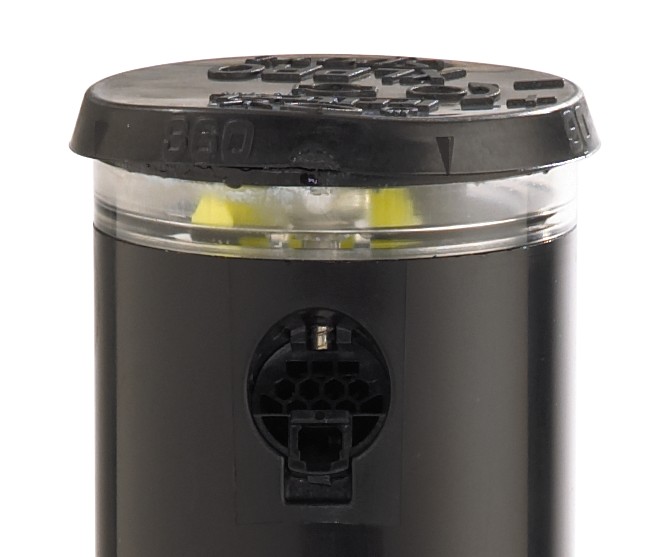

Rotor Platinum Sport 1" has an adjustable part-circle and unidirectional full-circle coverage in one unit (45°-360°) which reduces inventory requirements. The rotor's recommended operating working pressure is from 2,8 to 6,9 bar and radius from 13,7 to 23,8 m. Rotor Platinum Sport 1" offers full (12,7 cm) pop-up height to nozzle provides interference-free operation in tall grass.


Characterizations
  • Full (12,7 cm) pop-up height to nozzle provides interference-free operation in tall grass
  • Reversible check valve eliminates low-head drainage
  • Standard rubber cover provides added protection against debris and keeps playing areas safe
  • ArcView arc indicator simplifies adjustments
  • Adjustable part-circle and unidirectional full-circle coverage in one unit (45°-360°) reduces inventory requirements
  • Automatic arc return protects against tampering and vandalism
  • Water-lubricated gear drive assembly enhances reliability

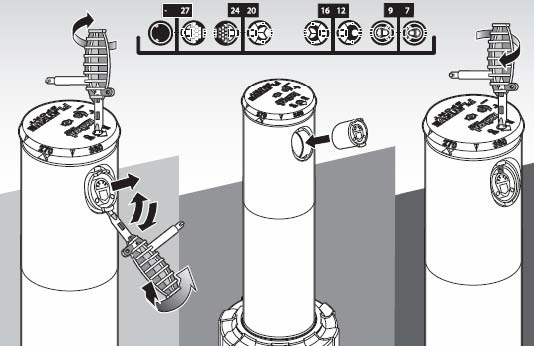

  • All adjustments can be made from the top of the rotor - wet or dry - for fast, convenient installation
  • Seven nozzles sizes
  • Small (5,6 cm) exposed surface diameter
  • Nozzle support/Break up screw
  • Vandalism locking cap screw
Technical information
Radius: 13,7 – 23,8 m
Flow rate: 22,3 – 115,5 l/min
Recommended operating pressure range: 3,4 – 6,9 bar
Optimum operating pressure: 4,8 bar
Inlet size: 1” BSP
Nozzle trajectory: 25°
Arc adjustment: 45° – 360° (unidirectional at 360°)
D i me n s i o n s
  • Body height: 22,4 cm
  • Rubber cover diameter: 5,6 cm
  • Body diameter: 6,9 cm



Rotor Platimun Sport 1" is delievered to you with seven nozzles.



Products

    Platinum Sport Rotor 1"

    Article № PTSPORT-BSP

    Price: 96,02 lv.

      pcs
    Minimum quantity for order 1 pcs
    *model_availability_till_3_days

    Platinum Sport Rotor 1"

    Article № PTSPORT-BSP-SS

    Price: 156,00 lv.

      pcs
    Minimum quantity for order 1 pcs
    *model_availability_till_3_days
