Spraying system ULV for herbicide VARIMANT-WINNER UNO

Spraying system ULV for herbicide VARIMANT-WINNER UNO

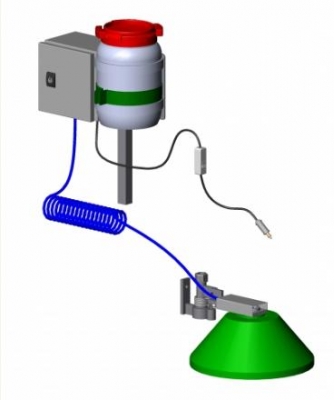

Varimant models for front or rear-mounting are suited to tasks where, above all, weight-savings are a consideration, such as on steep slopes or on unstable terrain, or where path-dependent metering is not desired. The Varimant pump, as with the nozzle, is electrically driven via the tractor's on-board power supple while the spray jet is switched on and off by the push of a button. The unit's extension arms are standard equipped with plastic spray hoods with a spray width of 36 cm. A folding mechanism on the extension arm ensures that the spray hood folds back upon contact with an obstacle (e.g. tree trunk) so that no damage will occur. The folding mechanism spring can be optionally replaced with a softer spring in order to better protect tender, young trees, for example, from damage. The spray hood, itself, rotates upon contact with the obstacle.

Varimant models are aslo available with optional spray hoods with a steel roll-up device and a 40 cm spray width. This device rolls up upon contact with the obstacle and protects the spray hood, above all, from being damaged.
