Decoder System ICOD

Decoder System ICOD

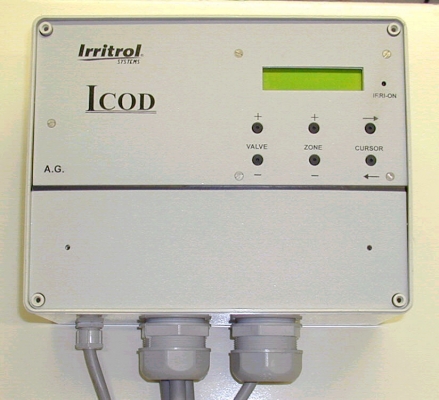

The DECODING system consists of a main unit ICOD able to codify and retransmit by two no polarized wire cable the signal received from a controller, and decoders to convert the signal received from ICOD.

Characterizations
  • Can be used with all Irritrol controllers and other controllers without open circuit alarm
  • The system can operate with a minimum of one module (8 stations) and a maximum of six modules (48 stations)
  • Easy programming using the six buttons of the ICOD viewable, on alphanumeric display
  • Decoders are identified by a 6-digit code that can be manually programmed or automatically read by ICOD
  • Up to 4 decoders per station or 3 valves per decoder
  • 4 different types of alarm which respectively identify potential problems (open circuit, overload, short-circuit and one generic)
  • Possibility of updating the software and modifying the operating parameters (delay times between one decoder and the next, EV, MV/CP holding current, station activation via PC, alarm list and erasing, etc.) through a RS232 port for connection to a PC
  • Selectable languages: English, Italian, French, Spanish and German.
Technical information
PVC cabinet for indoor/outdoor use (IP56), removable cover with 4 screws, for wall-mounting
Dimensions: 220 x 300 x 120 mm (H xW x D)
Stations: 8, 16, 24, 32, 40, 48 depending on the modules installed
Connections:
- Power cable 3 x 1 mm2
- Input connection cable: 1 (3 max) x 16 x 0.5 mm2
- Common 1 mm2 black unipolar cable
- Decoder connection cable, max 1-6 mm
Power supply and outputs:
- Input: primary 230 VAC, 50/60 Hz.
- Secondary A: 7 VAC, 400 mA
- Secondary B: 33.5 VAC, 2.2 Amp
- Output: 2-wire, 46 VDC, max 2 Amp
Sensor input: N.C. switch
Alarm output: N.C. or N.O. relay, 230 VAC,10 Amp
Terminal boards:
- Inputs (1,2,3, .... 48) 1 mm
- Output, max 6 mm
Temperature: -5°C to +50°C
