Valve Richdel 200-B
Brand

Irritrol USA

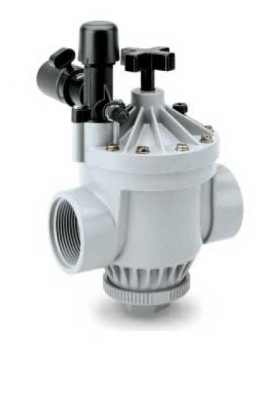

Valve RICHDEL 200-B

Valve Richdel 200-B

The valve accepts Controllers with 9V batteries. For that purpose the existing solenoid needs to be repleced with Impulse solenoid 9 - 12 VDC.

Manufactured in the USA, the valve Richdell 200-B is available both with globe and angle configuration.

Characterizations
  • Globe/angle configuration (G/A)
  • Accepts Irritrol OmniReg pressure regulator
  • Flow Control (FC)
  • Internal and external manual bleed
  • Heavy-duty, corrosion and UV resistant PVC construction with stainless steel bonnet screws
  • Screws accept phillips, flat-blade and hex driver tools
  • O-ring gasket on unused inlet cap guarantees hermetic seal and does not require Teflon
  • Reinforced top and base of body
  • Captive Solenoid (the plunger is retained in the solenoid)
  • Slow, anti water hammer closing
  • Double-beaded diaphragm provides leak-proof seal
Technical information
The valve has a female thread BSP 11/2” and 2” (NPT available on request)
Working pressure: 1,4 to 10 bar
Solenoid 24VAC 50Hz (24VAC 60Hz on request)
  • Inrush current, 0,34 Amp.
  • Holding current, 0,20 Amp.

Н - Q characteristic of valve Richdel 216 1 1/2" FC
Globe configuration

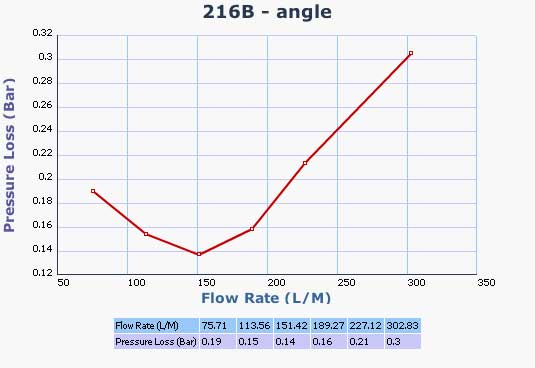

Н - Q characteristic of valve Richdel 216 1 1/2" FC
Angle configuration

Products

    Valve Richdel модел 216, 1 1/2" FBSP G/A FC

    Article № 216B-M

    Price: 118,80 lv.


    Minimum quantity for order 1

    Valve Richdel модел 216, 2” FBSP G/A FC

    Article № 217B-M

    Price: 170,40 lv.

      pcs
    Minimum quantity for order 1 pcs

    Valve Richdel 216,1½" BSP, female, Flow Control, In-line/Angle, w/o solenoid

    Article № 216B-M-LS

    Price: 129,55 lv.

    Request for availability

    Valve Richdel 217, 2" BSP, female, Flow Control, In-line/Angle, w/o solenoid

    Article № 217B-M-LS

    Price: 186,70 lv.

    Request for availability
