Sprayhead SL
Brand

Irritrol USA

Sprayhead SL

Sprayhead SL

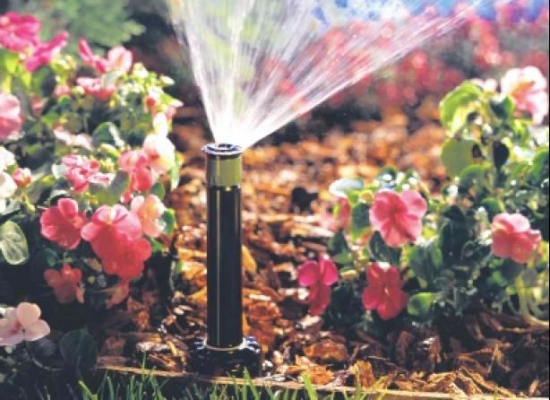

Deflector sprayheads are a perfect solution for the irrigation of small gardens. They are fitted into the ground and activated by the water pressure. This type of sprayheads are not an obstacle to maintaining green areas.

Characterizations
  • Sprayhead with compact slimline body design
  • Available with pre-installed Variable Arc Nozzles in four radii (10’, 12’, 15’ and 17’)
  • Matched precipitation rate nozzles provide even coverage
  • Adjustable arc patterns from 25°-360°
  • Debris labels on models without nozzles for easy flushing
  • Pressure-activated seal reduces flow-by during pop up and keeps debris away from stem during retraction
  • Heavy-duty, stainless steel retract spring ensures positive pop down
  • One-piece molded body adds durability
  • Removable nozzle, screen and internal components for flushing and servicing
  • The sprayhead accepts all Irritrol MPR Variable Arc Nozzles and Irritrol MPR Canopy™ fixed-arc nozzles
  • Field-installable check valve (SL-CV) holds back up to seven feet of elevation change to prevent low-head drainage
Technical information
Sprayhead's recommended working pressure: 1,5 - 3 bar
Inlet size: 1⁄2” female NPT threads
Exposed diameter: 31,8 mm

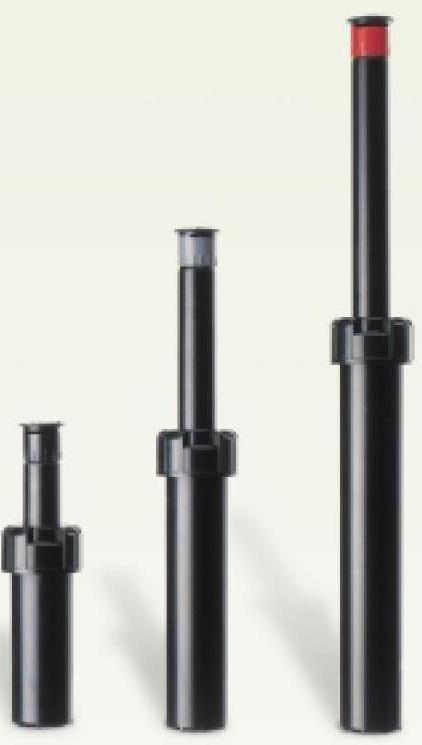

Body height of the sprayhead:
  • SL200: 10,5 cm
  • SL400: 15,5 cm
  • SL600: 20,5 cm
