V12S Silent Dust Controller
Brand

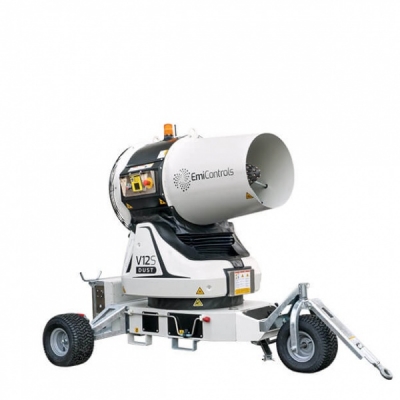

V12S Silent Dust Controller

Тhe fully-automatic V12S offers a unuversal, powerfull and silent environmentally-friendly dust solution. The specially designed 11kW turbine is almost whisper quiet when running only producing 60dBA at 20m. The turbine has the ability to run at 2 speeds 1500rpm and 1000rpm giving the turbine the flexibility to throw the atomized water from 10meters to over 50 meters.

Characterizations
  • Range (up to ): 45-50m
Technical information
Dimension data:
ominal voltage 400 V
Frequency 50 Hz
Nominal current 23 A
Power connection 23Ax5
Nominal power - turbine 11 kW
Nominal power - pump 0,75 kW
Length (stationary support) 1650 mm
Width (stationary support) 1200 mm
Height (stationary support) 2370 mm
Length w/o steering (undercarriage) 1860 mm
Length with steering (undercarriage) 2360 mm
Width (on undercarriage) 1900 mm
Height (on undercarriage) 2400 mm
Weight on fixed support 470 kg
Weight on undercarriage w/o steering 510 kg
Weight on undercarriage with steering 550 kg
Weight machine only 390 kg
Storage temperature -5° a 45° C
Tilt turbine 0° - 52°
Swing (automatic) 360°
Range (up to) 30-45 m
Acoustic emissions (1500/1000 rpm) 63/60dB(A) @ 20m
Min. water inlet pressure 3 bar
Water filter 1µm/12000 mesh
Water connection - 2 inch Storz
Water consumption 4,2 l/h
