Rotor Rain Bird 3500
Brand

Rain Bird USA

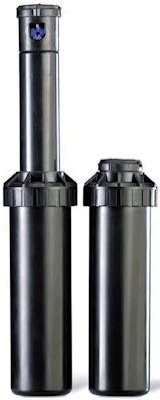

Rotor Rain Bird 3500

Rotor Rain Bird 3500

The 3500 Series Rotor is an easy to use short to mid-range 1/2" gear-drive rotor, offering value and convenience for residential applications. Utilizing a simple flat-bladed screwdriver, the 3500's arc adjustment is quick and easy.

Characterizations
  • Top-adjust arc adjustment requiring only a flat-blade screwdriver
  • Three year professional customer satisfaction policy
  • Shrub and 4" models available
  • True 4" (10 cm) pop-up (measured from center of nozzle)
  • 40- 360° Arc Part-Circle arc rotation and reversing Full-Circle rotation in one
  • Attachable nozzle tree of six Rain Curtain™ nozzles
  • Radius adjustment screw allows up to 35% radius reduction without changing nozzles
  • Quick Check Arc/Fast Forward
  • Dual action, positive stop wiper seal protects internals from debris and assures positive pop-up and retraction
  • Self-adjusting stator does not require replacement when changing nozzles
  • Water-lubricated gear-drive design for durable, reliable operation
  • Easily removable filter screen
  • Nozzle removal feature
  • Arc setting factory preset at 180° for installation convenience
  • Optional non-potable cover for easy identification of reclaimed water
  • Optional Seal-A-Matic (SAM™) check valve holds up to 7 feet (2,1m) of elevation change, to prevent puddling and erosion caused by low head drainage
Technical information
Rotor's Inlet: 1/2” female-threaded
Adjustable arc range: 40° to 360°
Flow range: 2.0 – 17.3 l/min. (0.12 – 1.04m³/h)
Radius: 4.6 – 10.7 mt
Pressure range for the rotor: 1.7 – 3.8 bar
Riser height: (10.2 cm)
Products

    Rotary sprinkler 3504, 10 cm, (40~360º)

    Article № RB-3504-PC

    Price: 27,096 lv.

      pcs
    Minimum quantity for order 1 pcs
