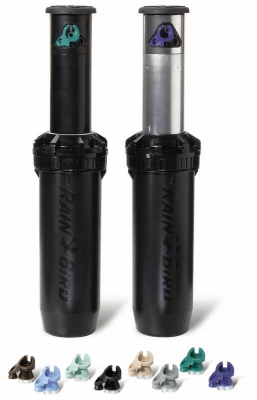

Rotor Rain Bird 6504 Falcon
Brand

Rain Bird USA

Rotor Rain Bird 6504 Falcon

Rotor Rain Bird 6504 Falcon

The Rain Bird 6504 (FALCON® ) rotor has a closed-casing that is ideal for large turf sites as well as a variety of athletic fields: football, rugby, tennis courts.Patented, pressure-activated wiper seal and tapered riser stem on both plastic and stainless steel models protect internals from debris to ensure positive pop-up and retraction

Characterizations
  • Stainless steel riser option helps deter vandalism on public turf areas
  • Five-year trade warranty
  • Easy arc adjustment (part-circle model) through top of rotor from 40° to 360°. No special tools required
  • Water-lubricated gear drive for reliable, durable rotation
  • Heavy-duty, stainless steel retract spring ensures positive pop-down
  • Standard black rubber cover or optional purple rubber cover for non-potable water
  • Removable Seal-A-Matic™ (SAM) check device prevents puddling and erosion caused by low-head drainage
  • Eight color-coded Rain Curtain™ nozzles offer greater design flexibility
  • Patented Rain Curtain™ nozzles have three ports for optimal long-range, mid-range, and close-in watering, for green grass even in the heat of summer
  • Nozzles are interchangeable from the front with no special tools
  • Self-adjusting stator does not require replacement when changing nozzles
  • Radius adjustment screw allows radius reduction up to 25% without changing nozzles
  • Small 2" (5,1 cm) exposed diameter reduces possibility of injury in play areas
  • Patented, pressure-activated wiper seal and tapered riser stem on both plastic and stainless steel models protect internals from debris to ensure positive pop-up and retraction
  • 4" (10,2 cm) pop-up height to center line of nozzle clears taller turfgrass
  • Stainless steel trip gears ensure long-term durability
  • Optional rubber collar for added safety on playing fields
  • High speed model completes full rotation in approximately one minute for quick wet-down of clay tennis courts and sports turf infield areas
Technical information
Inlet: 1” female threaded
Flow range: 11 до 82,2 l/min
Working pressure: 2.1 to 6.2 bar
Overall height (retracted): 11.4 cm
Radius: 11.9 to 19.8 m
Standard nozzle trajectory: 25°
Low angle nozzle trajectory: 11°
Riser height: 10 cm
