Brand

Perrot

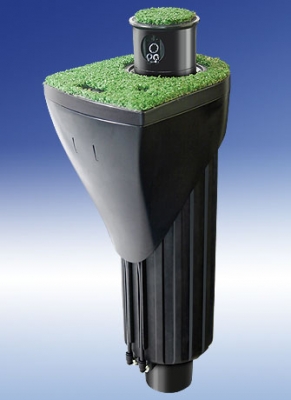

Pop-up sprinkler Perrot HYDRA L

Pop-up sprinkler HYDRA L

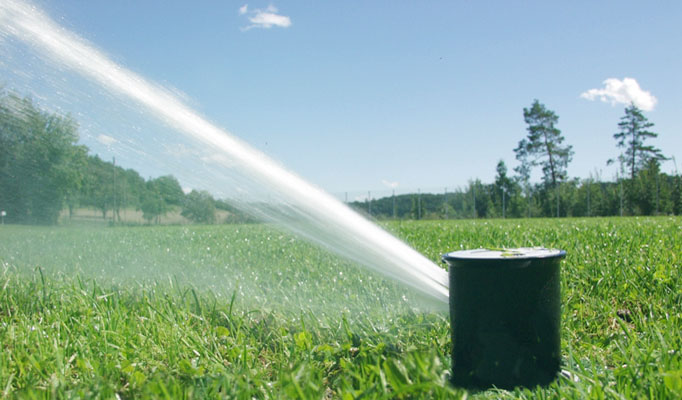

The gear drive pop-up sprinkler HYDRA has been developed especially for the irrigation of sports turf like soccer fields, golf courses and riding facilities. The below mentioned performance features represent everything, architects, investors and greenkeepers have ever wished for: flexible arc adjustment on both sides, arc settings are visible even when the sprinkler ist not operating - the chosen arc is indicated on the graduated collar on the sprinkler head. Central water system, protective housing is easily accesible from above, self-flushing device, variable rotation time. In short - The one-of-a-kind gear drive pop-up sprinkler.



  • Durable engineering plastic, brass and stainless steel construction
  • Pop-up sprinkler with 25° trajectory
  • Rotation time adjustable - at 6 bar 100 to 130 sec.
  • Drive unit
  • Guiding and sector device encapsulated, valve-in-head sprinkler can be operated from above(ON-OFF-AUTO)
Pop-up sprinkler HYDRA L

TYPES AVAILABLE
- green lid with artificial lawn (-SVAC)
- black lid with artificial lawn ring (-WSVAC)
- black lid (-VAC and -WVAC)

Available as pop-up sprinkler
- with sector device (W)
- with valve-in-head (VAC)

Sprinkler type HYDRA L
Inlet 1 1/2"
Installation height 470 mm
Rising height 90 mm
Operating pressure 4,0 - 7,0 bar
Outer Ø housing 225 mm
Outer Ø lid 87 mm
Nozzle size 7,0 - 14,0 mm
Casting range 21,0 - 32,0 m
Flow rate 5,2 - 23,3 m3/h
