Pop-up sprinkler Perrot HYDRA S

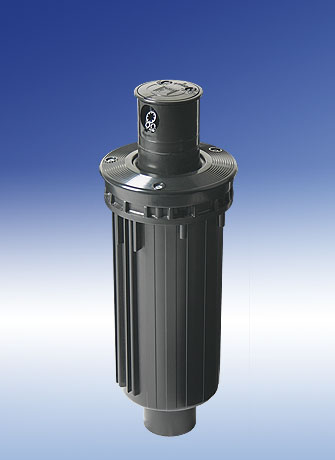

Pop-up sprinkler HYDRA S

The gear drive pop-up sprinkler HYDRA has been developed especially for the irrigation of sports turf like soccer fields, golf courses and riding facilities. The below mentioned performance features represent everything, architects, investors and greenkeepers have ever wished for: flexible arc adjustment on both sides, arc settings are visible even when the sprinkler ist not operating - the chosen arc is indicated on the graduated collar on the sprinkler head. Central water system, protective housing is easily accesible from above, self-flushing device, variable rotation time. In short - The one-of-a-kind gear drive pop-up sprinkler.



  • Durable engineering plastic, brass and stainless steel construction
  • Pop-up sprinkler with 25° trajectory
  • Central flow system reduces hydraulic friction and improves the performance efficiency
  • Both left and right sectors are adjustable
  • Adjusting the sector is possible when sprinkler is not in operation
  • Closed case rotor
  • Rotation speed adjustable (60 - 130 sec/360°)
  • Back nozzle 4,2 mm
  • High endurance ball bearings used inside the sprinkler
  • All parts including solenoid can be serviced from the top of the sprinkler without the need for digging
  • Flushing techniques ensure positive pop-up and pop-down
  • Manual control and pressure regulation on valve in head models can be adjusted from the top of the sprinkler (ON-OFF-AUTO)
Pop-up sprinkler HYDRA S

TYPES AVAILABLE
Full circle sprinkler with black lid
  • with sector device (W)
  • with nozzle on back side (D)
  • with stop valve (H)
  • as valve-in-head (VAC)

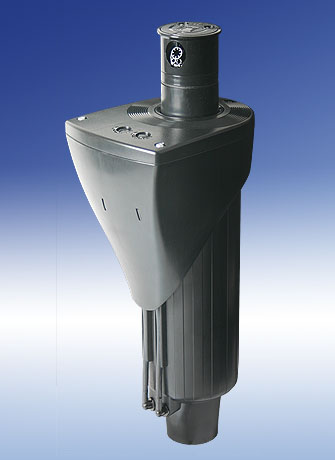

Sprinkler HYDRA S - H S - VAC
Inlet 1" 1"
Installation height 275 mm 345 mm
Riser height 80 mm 80 mm
Minimun pressure 3.5 bar 3.5 bar
Outer Ø housing 125 mm 170 mm
Outer Ø lid 60 mm 60 mm
