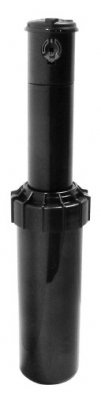

Irritrol Rotor 550R

Rotor 550R

The new Irritrol® 550R rotor delivers basic simplicity and dependable action all in one rotor. With its proven ¾” geardriven design, 15 mt. of watering radius and a full 5” (12,7 cm) pop-up, this rotor just gets more done. Installation is made simple with Irritrol’s familiar top arc adjustment and all-in-one full- and part-circle operation from 40 to 360 degrees. And, with the ability to quick check the arc with positive left and right stops, set-up time is further reduced. The 550R comes with a wide selection of nozzles (8 standard and 4 low angle nozzles) making it the ideal rotor for your everyday installations.

  • Familiar top adjustment, wet or dry for fast convenient installation
  • Reversing full- and part-circle operation allows you to adjust the rotor from 40° to 360°
  • Non-flushing wiper seal reduces leaks caused by debris trapped under seal
  • ¾” inlet replaces all standard rotors
  • All adjustments made with a standard screwdriver, no special tools required
  • Standard rubber cover provides added protection against debris and keeps playing areas safe
  • Wide selection of nozzles - 8 Standard and 4 Low Angle nozzles included with each rotor to handle a wide range of applications
  • Positive left and right stops (fixed left stop) reduces set-up time by allowing you to quick check the arc
  • Optional check valve holds up to 2,1 mt of elevation change, eliminates water waste
Rotor's Inlet: ¾” female-threaded
Adjustable arc range: 40° to 360°
Flow range: 2,8 - 36,7 l/min.
Recommended operating pressure: 3 bar
Radius: 7,6 - 15,2 mt
Pressure range for the rotor: 1,7 - 4,5 bar
Standard nozzle trajectory: 25°
Low angle nozzle trajectory: 12°°
8 standard and 4 low angle nozzles included
Riser height: (12,7 cm)
