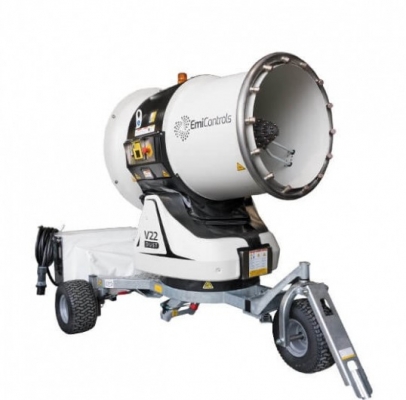

V22 Dust Controller

The V22 is the most powerful dust-suppression machine in EmiControls’ product range. Due to its long projection range and integrated 360° pivot function, it is most suitable for dust-control applications covering large areas.

The patented nozzle head and the outer nozzle ring generate a finely atomized mist, which binds the dust particles and prevents them from spreading. The projection distance of the inside nozzle head can be limited to close range by switching off the turbine. A +43°angle of incline can be set with the user-friendly remote control.

Typical fields of application for dust suppression with the V22 include all kinds of opencast mines, demolition sites, recycling plants, storage depots, loading facilities, landfill sites and woodworking shops.

  • Range (up to): 70m

Nominal voltage 400 V
Frequency 50 Hz
Nominal current 40/70 A
Power connection 63/125Ax5
Nominal power - turbine 18,5 kW
Nominal power - pump 15 kW
Length (stationary support) 1800 mm
Widht (stationary support) 1250 mm
Height (stationary support) 2500 mm
Length with steering (undercarriage) 3700 mm
Width (on undercarriage) 2400 mm
Heigth (on undercarriage) 2550 mm
Weight on fixed support 700 kg
Wight on undercarriage w/o steering 1400 kg
Weight on undercarriage with steering 1445 kg
Weight machine only 650 kg
Storage temperature -5° a 45° C
Tilt turbine 6° a 46°
Swing (automatic) 360°
Range (up to) 70 m
Acoustic emissions 63dB(A) @ 20m
Min. water inlet pressure 3 bar
Water filter 250µm/60mesh
Water consumption 130-350 l/min
