Brand

Dosatron

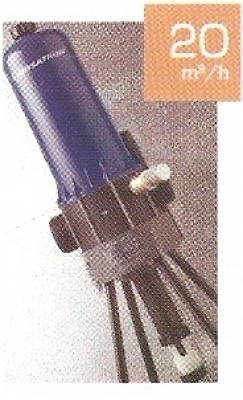

Dosatron 20 m3/h

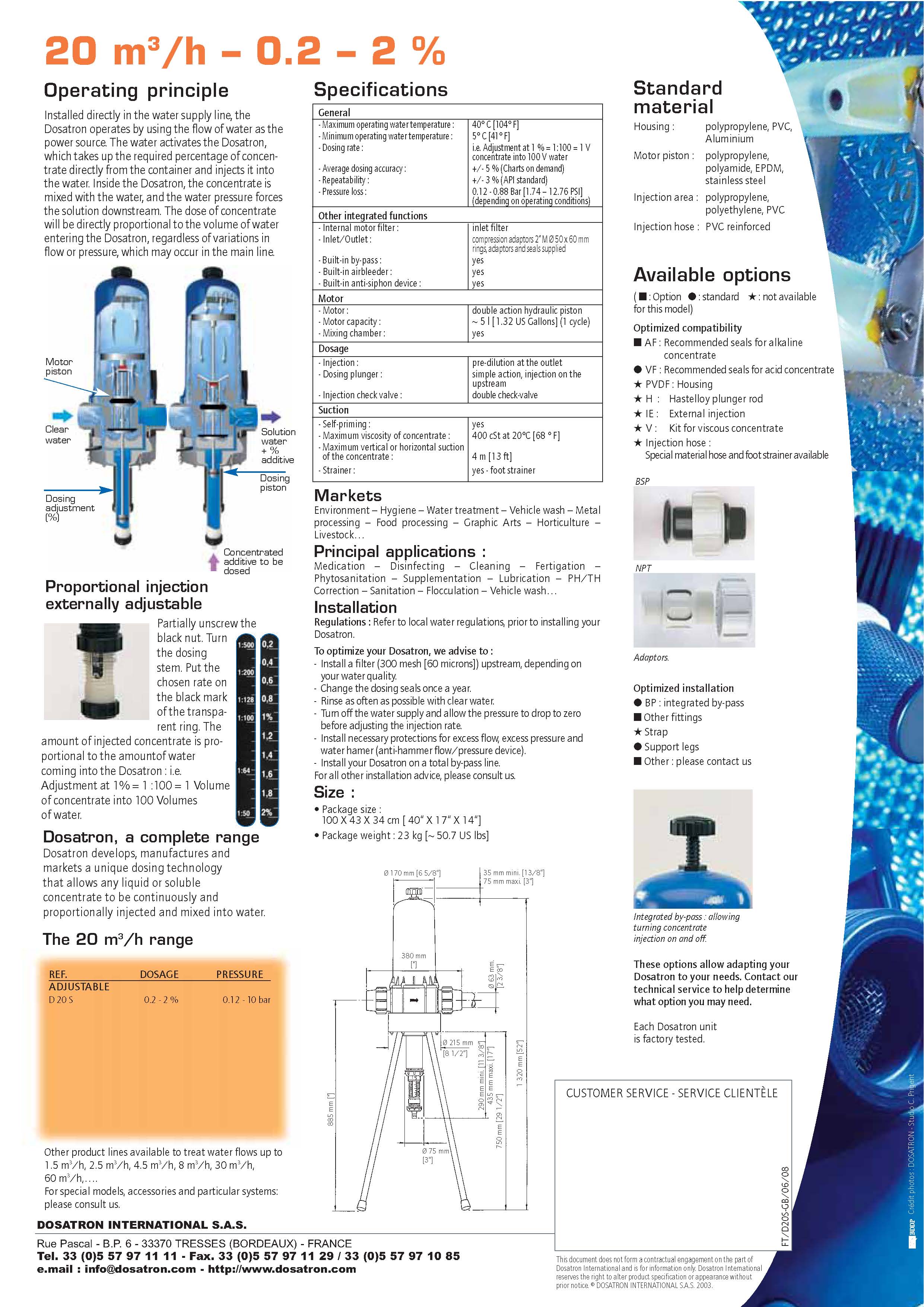

Installed directly in the water supply line,the Dosatron operates by using the flow of water as the power source.The water activates the Dosatron,which takes up the required percentage of concentrate directly from the container and injects it into the water.Inside the Dosatron,the the concentrate is mixed with the water ,and the water pressure forces the solution downstream.The dose of concentrate will be directly proportional to the volume of water entering the Dosatron ,regardless of variations in flow or pressure,which may occur in the main line.
Dosatron develops,manufactures and markets a unique dosing technology that allows any liquid or soluble concentrate to be continuously and proportionally injected and mixed into water.

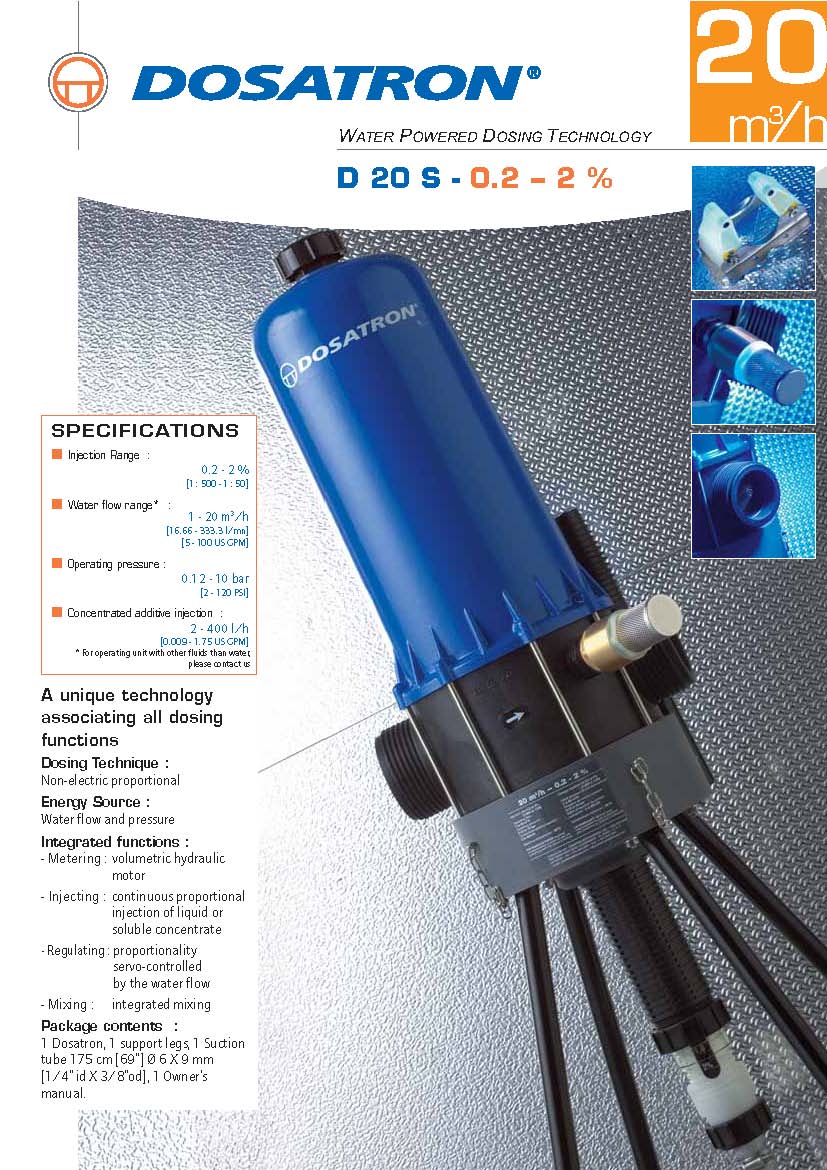

  • Dosing Technique: Non-electric proportional
  • Energy Source:Water flow and pressure
  • Integrated functions: Metering: volumetric hydraulic motor
  • Injecting: continuous proportional injection of liquid or soluble concentrate
  • Regulating: proportionality servocontrolled by the water flow
  • Mixing: integrated mixing
  • In/Out: 2''
  • Injection Range: 0.2 - 2%
  • Water flow range: 1 - 20 m3/h
  • Operating pressure: 0.12 - 10 bar
  • Concentrated additive injection: 2 - 400 l/h
