Brand

Perrot

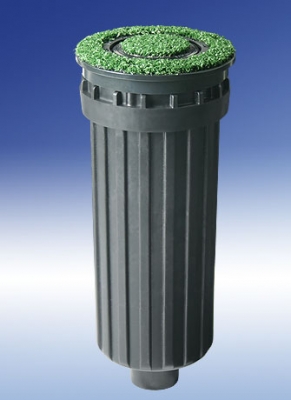

Pop-up sprinkler HYDRA M

Pop-up sprinkler HYDRA M

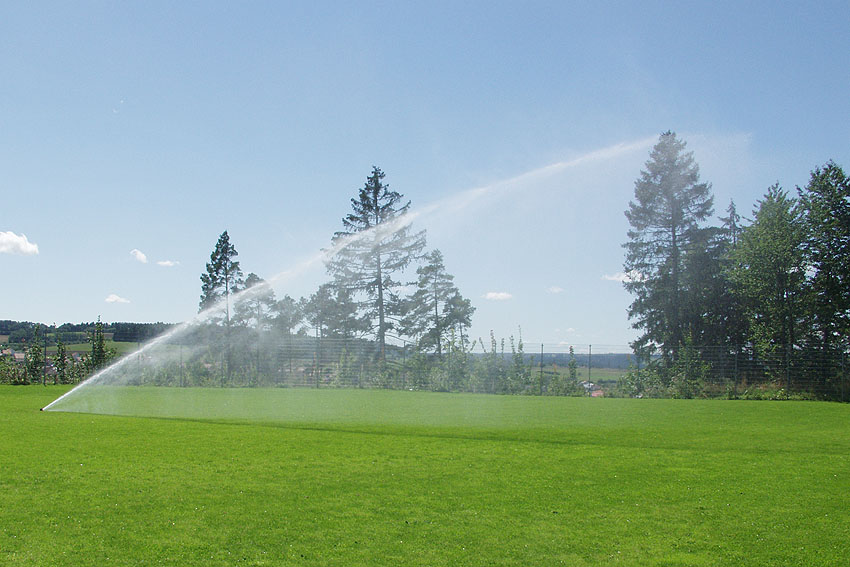

The gear drive pop-up sprinkler HYDRA has been developed especially for the irrigation of sports turf like soccer fields, golf courses and riding facilities. The below mentioned performance features represent everything, architects, investors and greenkeepers have ever wished for: flexible arc adjustment on both sides, arc settings are visible even when the sprinkler ist not operating - the chosen arc is indicated on the graduated collar on the sprinkler head. Central water system, protective housing is easily accesible from above, self-flushing device, variable rotation time. In short - The one-of-a-kind gear drive pop-up sprinkler.


  • Durable engineering plastic, brass and stainless steel construction
  • Pop-up sprinkler with 25° trajectory
  • Rotation time adjustable - at 6 bar 100 to 130 sec.
  • Drive unit
  • Guiding and sector device encapsulated
  • Central flow system reduces hydraulic friction and improves the performance efficiency
  • Both left and right sectors are adjustable
  • Adjusting the sector is possible when sprinkler is not in operation
  • Arc degrees can be viewed on the dial on top of the sprinkler
  • Closed case rotor
  • Rotation speed adjustable (60-130 sec/360°)
  • High endurance ball bearings used inside the sprinkler
  • Slip clutch combats vandalism
  • All parts can be serviced from the top of the sprinkler without the need for digging
  • Flushing techniques ensure positive pop-up and pop-down
  • Housing cover and sprinkler head complete with artificial lawn top. Artificial lawn on sprinkler head on full circle models only
Pop-up sprinkler HYDRA M

TYPES AVAILABLE
- green artificial lawn lid (S)
- black lid with artificial lawn ring

Available as pop-up sprinkler
- with sector device (W)
- with stop valve (H)

Sprinkler type HYDRA M
Inlet 1"
Installation height 382 mm
Rising height 90 mm
Operating pressure 4,0 - 7,0 bar
Outer Ø housing 162 mm
Outer Ø lid 87 mm
Nozzle size 7,0 - 12,0 mm
Casting range 21,0 - 31,0 m
Flow rate 5,2 - 17,4 m3/h


Minimum quantity for order
