Controller Rain Dial
Brand

Irritrol USA

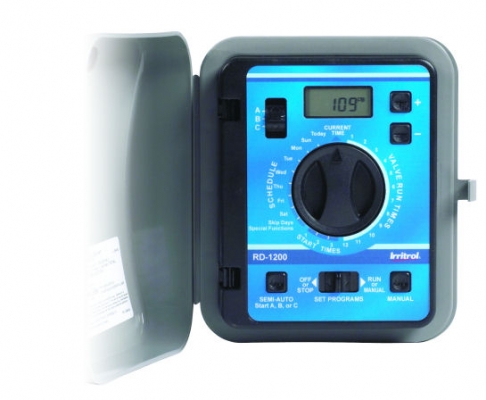

Controller New Rain Dial

Controller New Rain Dial

Controller New Rain Dial is available in 3 models with 3 idependent programs. The modular design allows remote programming and 9 volts Alkaline battery backup. Controller New Rain Dial is programmable under battery power.

New Rain Dial Features
 1. Programs like previous Rain Dial controller
When using the standard features, programming is the same. The new features are behind current dial positions.
 2. Odd/Even DateWatering Schedule
Municipalities or water purveyors will sometimes mandate Odd/Even date watering as a water conservation measure.
 3. Day Exclusion Option from Odd/Even and Skip
DaysWatering Schedules Enables select days to be restricted in Odd/Even and Skip Days watering schedules.
 4. Water Budget by Program
Enables the run time of all stations in a program to be simultaneously adjusted up or down by percentage from 0 to 200% in 10% increments.
 5. Well Recovery Delay
Enables an adjustable delay period from 1 second to 2 hours to be inserted between consecutive stations during a watering cycle – facilitates slow closing valves or well water recovery.
 6. Pump/Master Valve On/Off during Well Recovery Delay
Allows the Pump/Master Valve circuit to be automatically switched on or off during a Well Recovery delay period. For example, a system supplied by a pump with slow closing valves would require the pump to be active during a delay between stations; a well water recovery system would not.
 7. Pump/Master Valve Control by Station
Allows automatic Pump/Master Valve circuit operation to be selected for each station as needed.
 8. Program Stack/Overlap Option
Enables watering operation to be restricted to one program at a time (stacked) or allowed to run up to 3 programs concurrently.
 9. Rain Delay up to 9 Days
The Rain Dial can now be set to delay watering up to nine (9) days and then automatically resume its schedule.

Characterizations
  • The controller is available in 6, 9 and 12 station models
  • Modular design allows remote programming
  • 3 independent programs
  • Start times of the controller: 3 per program up to 9 daily starts
  • Run times: 1 min to 5,9 hours
  • Watering schedule: 7 days or “SKIP DAYS” option from 1 to 15 days
  • Semi automatic and timed manual operation
  • Large LCD display
  • Self diagnostic circuit breaker
  • Weather resistant locking cabinet (out door model)
  • Built-in or external transformer (to order apart)
  • Full size terminal board
  • 9 volts Alkaline battery backup
  • Safety program
  • Master valve/Pump start circuit
  • Programmable under battery power.
Technical information
Controller Input: 220 VAC, 50/60 Hz
Max output per station 24 VAC, 0,5 Amp
Max total controller output 24 VAC, 1 Amp (including Pump Start).
Products

    RAIN DIAL, 3 programs, 6 Stn., internal transformer 220 Volt

    Article № RD600-EX-50H

    Price: 323,112 lv.

    Request for availability

    RAIN DIAL, 3 programs, 9 Stn., internal transformer 220 Volt

    Article № RD900-EX-50H

    Price: 422,532 lv.

      pcs
    Minimum quantity for order 1 pcs

    RAIN DIAL, 3 programs, 12 Stn., internal transformer 220 Volt

    Article № RD1200-EX-50H

    Price: 521,94 lv.

    Request for availability

    RAIN DIAL, 3 programs, 6 Stn., internal transformer 110 Volt

    Article № RD600-EXT

    Price: 404,352 lv.

    Request for availability

    Rain Dial Module, 6 Stations

    Article № RD-6MOD-R

    Price: 219,396 lv.

    Request for availability

    Rain Dial Module, 9 Stations

    Article № RD-9MOD-R

    Price: 304,50 lv.

      pcs
    Minimum quantity for order 1 pcs

    Rain Dial Module, 12 Stations

    Article № RD-12MOD-R

    Price: 386,352 lv.

    Request for availability
