Controller Total Control
Brand

Irritrol USA

Controller Total Control

Controller Total Control

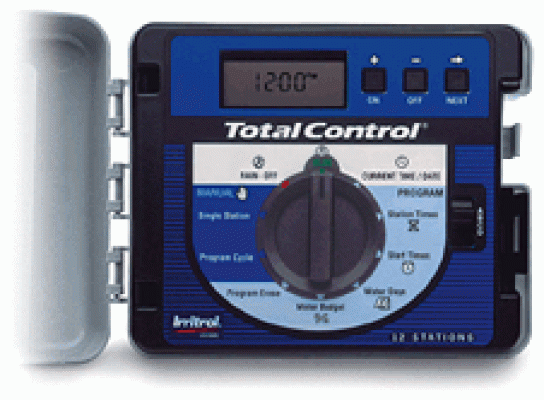

Controller Total Control is available in 6 models with up to 24 stations, 4 independent programs that can run simultaneously and 16 starts per program daily. Controller Total Control has a programmable Master Valve/Pump start as well as water budget from 0% to 200% increasing of 10. The permanent memory of the controller will store programs for 8 years. Controller Total Control is suitable both for indoor and outdoor installation. A self-diagnostic circuit breaker of the controller identifies and overrides an electrical malfunction of a valve.

Characterizations
  • 6, 9, 12, 15, 18 and 24 stations
  • 4 independent programs that can run simultaneously
  • Start times: 4 per program up to 16 daily starts
  • Permanent memory that will store programs for 8 years
  • The battery will maintain the time during power failure (up to 90 days)
  • Watering time ranges from 1 to 600 minutes
  • Watering schedule: 365 days calendar, seven day “select a day” calendar, odd/even days or interval option from 1 to 30 days
  • Automatic, semi-automatic or manual start
  • Programmable Rain Off (up to 7 days)
  • Programmable Master Valve/Pump Start
  • Stacking Program: if several cycles overlap in the same program, the controllet will automatically make the start time slip until the former cycle is completed
  • Large liquid crystal display
  • Extractable panel
  • Central selector
  • Built-in transformer
  • Simple, one-step erase program function
  • Number of stations can be expanded by simply substituting a new module in the same box
  • Self diagnostic circut breaker identifies and overrides an electrical malfunction of a valve
  • Two stage primary and secondary surge protection (mod. 24 Stn.).
  • Water budget from 0% to 200% increasing of 10
Technical information
  • Input, 220 VAC 50 Hz (110 VAC 60 Hz available on request)
  • Max output per station: 24 VAC 0,5 Amp.
  • Max. total controller output (including master valve): 24 VAC - 1,25 Amp.
Products

    Controller TOTAL CONTROL 4 programs, 6 stations, built-in transformer 220 V

    Article № TC-6EX-R-50H

    Price: 575,40 lv.

    Request for availability

    Controller TOTAL CONTROL 4 programs, 9 stations, built-in transformer 220 V

    Article № TC-9EX-R-50H

    Price: 653,20 lv.

    Request for availability

    Controller TOTAL CONTROL 4 programs, 12 stations, built-in transformer 220 V

    Article № TC-12EX-R-50H

    Price: 767,004 lv.

    Request for availability

    Controller TOTAL CONTROL 4 programs, 15 stations, built-in transformer 220 V

    Article № TC-15EX-R-50H

    Price: 724,224 lv.

    Request for availability

    Controller TOTAL CONTROL 4 programs, 18 stations, built-in transformer 220 V

    Article № TC-18EX-R-50H

    Price: 833,10 lv.

      pcs
    Minimum quantity for order 1 pcs

    Controller TOTAL CONTROL 4 programs, 24 stations, built-in transformer 220 V

    Article № TC-24EX-R-50H

    Price: 1 002,768 lv.

      pcs
    Minimum quantity for order 1 pcs
